The Universal Tripod series sets new standards for features and design in a professional quality tripod!
The Universal Tripod is available with carbon fiber or aluminum legs and center column.
Both types are available in three models that differ only in the number of leg sections, maximum height and leg diameter.

The Universal Tripod are available in 3 and 4-section legs.
The shortest version has a 28mm leg tube and a maximum height of 63”.
The 3-section with 32mm diameter leg tube opens to 67” and the 4-section with 32mm leg tube opens to 71”

All versions feature:

• Reversible center column with retractable hook for hanging a weight.

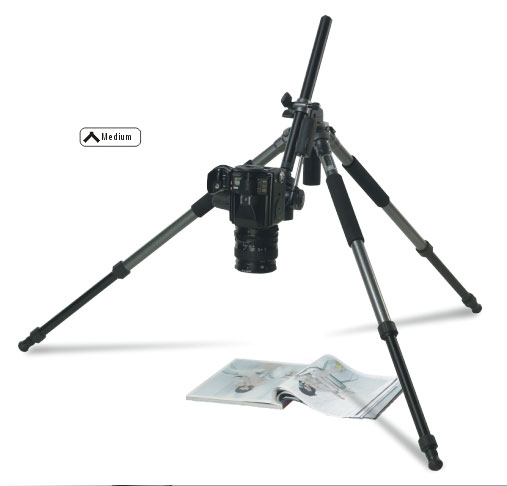

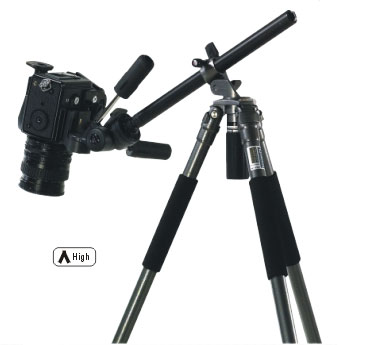

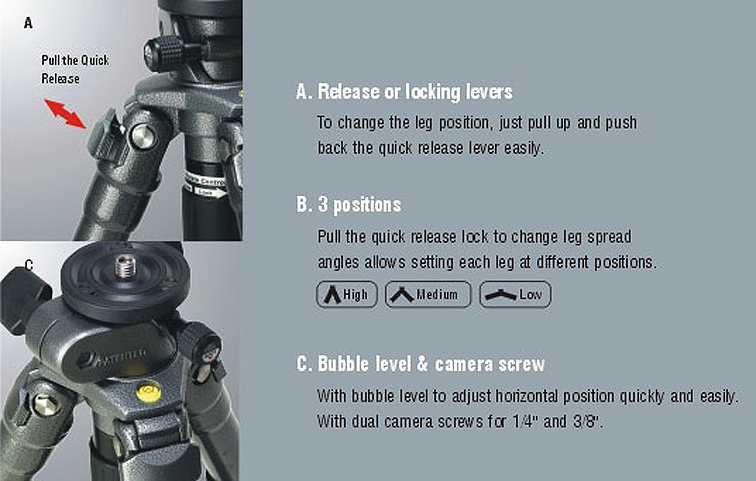

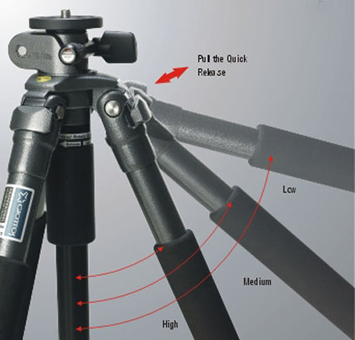

• Convenient leg spread adjustment with calibrated collar with settings for 25, 50 and 75° leg spread.
• Individual, independent leg adjustment clamp on each leg.
• Built-in spirit level.
• Special tilt control on column allows column to be used at any angle from the tripod legs.

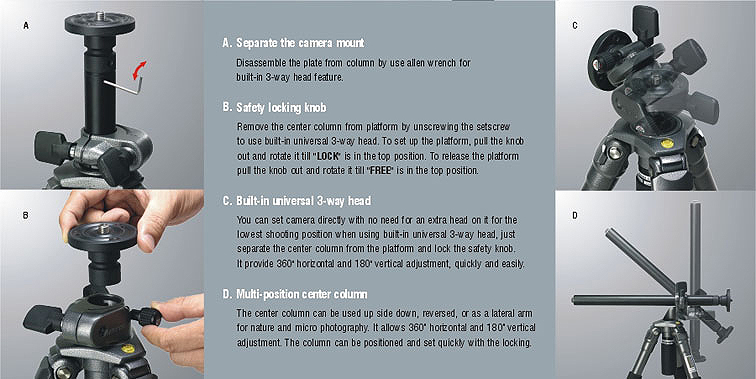

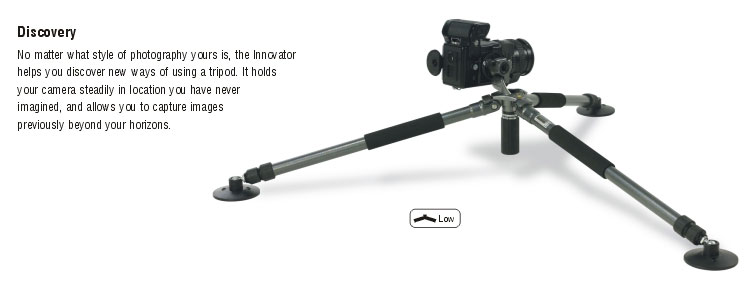

• Mounting plate for head can be removed from center column for low-level work (min. height 9.8”).
• When mounting plate is used without column it becomes a 2-way pan tilt head.
• Rubber ball feet remove to convert to metal spikes.
• Rubber ball/spike feet can be exchanged for snowshoes with spike or leveling pad feet.
• Three setscrews under mounting plate eliminate twisting of head.
• Supplied with padded adjustable strap, case and tool kit for adjustments and conversions.
• Legs have a thick foam padding to ensure a firm grip and for comfort in extreme temperatures.
• Leg locks have thick rubber grips for a sure grip.
• Dual spring-loaded head mounting screw with both 3/8 and 1/4” thread.

• 4 Sections
• Type: Aluminum
• Supports: 33 lbs.
• Weights: 6.6lbs
• Leg Diameter: 32mm
• Closed Length: 23.5"
• Max Height: 71"
• Min Height: 9.75"

• 4 Sections
• Type: Aluminum
• Supports: 6 lbs.
• Weights: 3.75lbs
• Leg Diameter: 20mm
• Closed Length: 18"
• Max Height: 54.5"
• Min Height: 14"

• 3 Sections
• Type: Aluminum
• Supports: 18 lbs.
• Weights: 3.8 lbs
• Leg Diameter: 24mm
• Closed Length: 21"
• Max Height: 54.5"
• Min Height: 14"

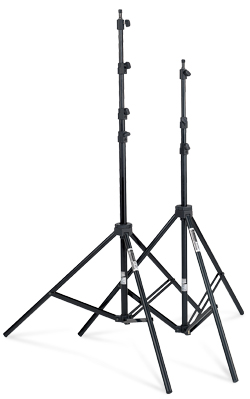

Giottos Light Stands

The compact model folds neatly for transport or storage,
while the largest is the ideal choice when increased
stability is needed.

1/4" and 3/8" threads
on stud mount for
lights and accessories with thread mount

Air -Cushioned
Air-cushioned prevents lights from
suddenly dropping when the
column is unlocked

• Air-Cushioned
• 3 Sections
• Min Height: 39 in (99cm)
• Max Height: 8 ft (2.4M)
• Closed Length: 36 in (91cm)
• Weight: 3.8 lbs
• Max Load: 13.2 lbs
